- Details
- ON/OFF switch control for quick opening and closing, with internal pressure relief valve when vacuum gauges are in OFF mode.
- Safety relief valve for excess vacuum.
- Water trap with overfill protection and particle filter.
- Whitworth thread G1/4” H inlet connection.
- Range: 0-20 kPa / 0-150 mmHg.
- Accuracy: ±5%.
- Flow rate: 90 L/min.
- Available with connections: BS, NF, DIN and SS. Check availability of other connections.

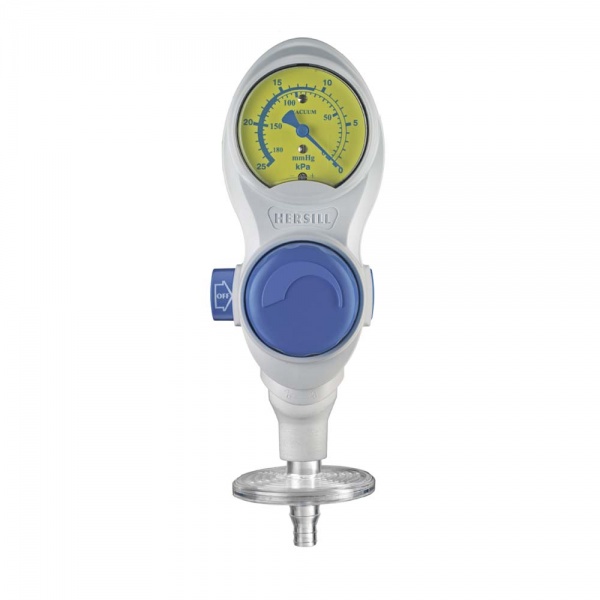

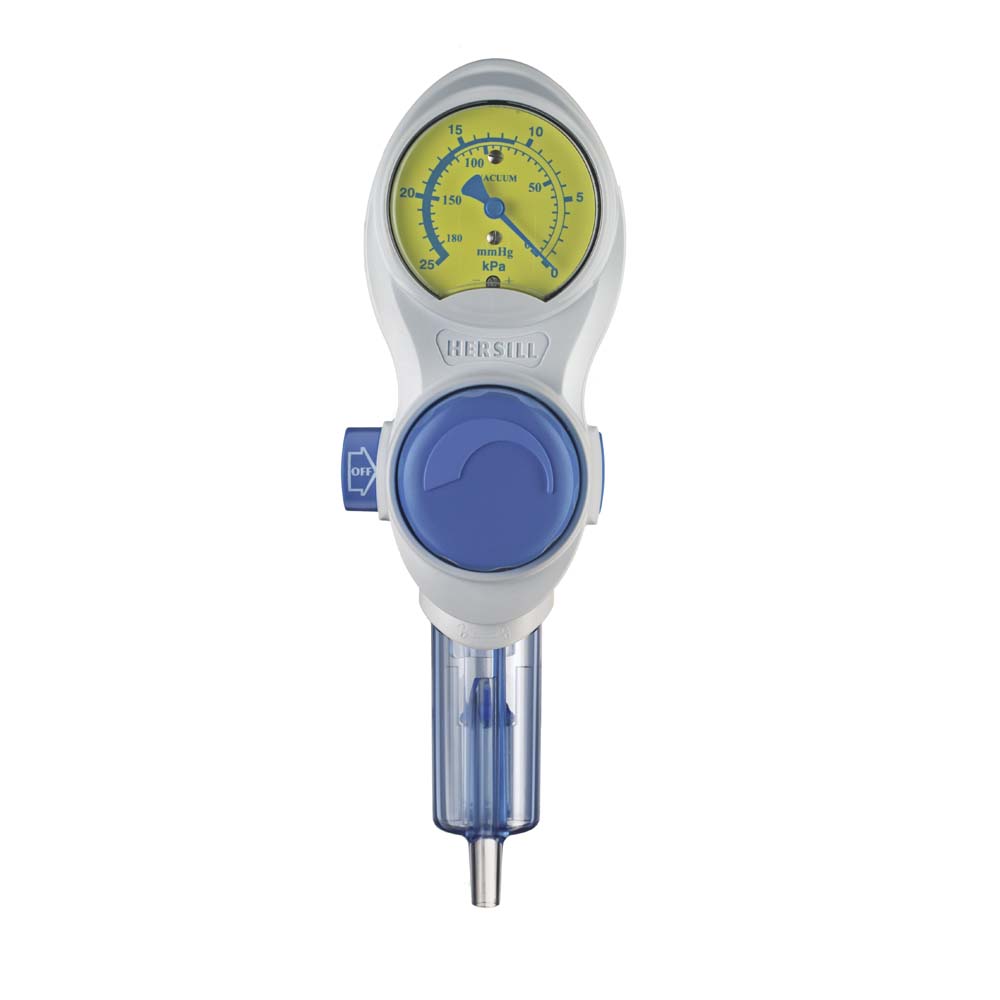

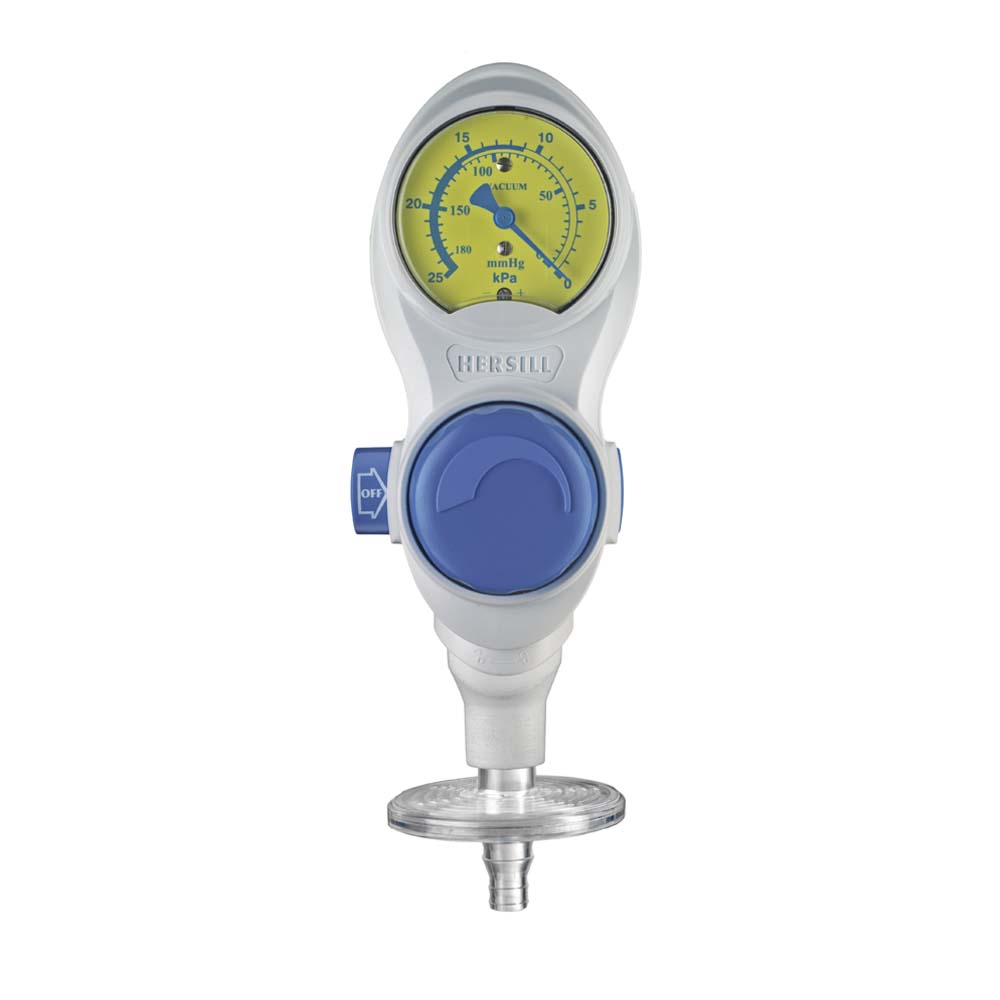

- Available with SafeyTrap water trap with overfill protection and high efficiency particle filter or hydrophobic bacterial viral filter.

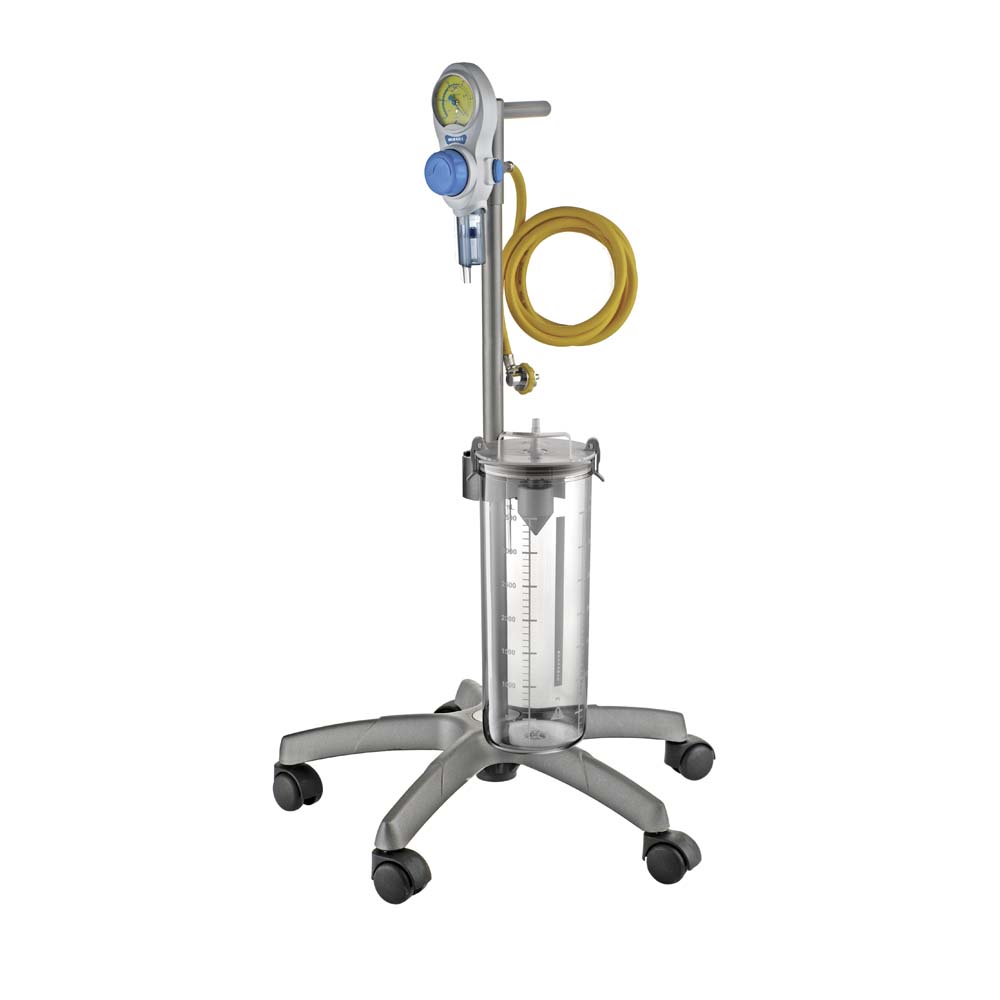

- Possibility of being supplied with an autoclavable collection bottle PC1/PSU1 – PC2/PSU2 – PC4/PSU4 (see more details about capacities and scales in the aspiration bottles section), rolling support and rail coupling system.
- Materials: ABS-PC body, NBR and silicone o-rings. Vacuum gauge window on PC. Inlet thread (without connection) Whitworth thread G1/4” H in stainless steel. Latex free.
- Dimensions: 240mm x 86mm x 86mm.
- Weight: 360g.
